Instrumentation Control Unit, ICU3S

c2 dm 04.01.001

Fig. shows a typical set of instruments for vehicles equipped with the Saf-T-Liner C2 School Bus ICU3S instrument cluster.

Note:  This instrument cluster is shown with the U.S. speedometer, which shows miles per hour (mph) more prominently than kilometers per hour (km/h).

The ICU3S instrument cluster receives information from the datalink and sensors installed on the vehicle, and sends that information to electronic gauges.

  1. Engine Oil Pressure Gauge

  2. Dash Message Center

  3. Dash Driver Display Screen

  4. Fuel Level Gauge

  5. Diesel Exhaust Fluid (DEF) Gauge

  6. Primary Air Pressure Gauge

  7. Mode/Reset Switch

  8. Secondary Air Pressure Gauge

  9. Speedometer

  10. Tachometer

  11. Transmission Temperature Gauge

  12. Coolant Temperature Gauge

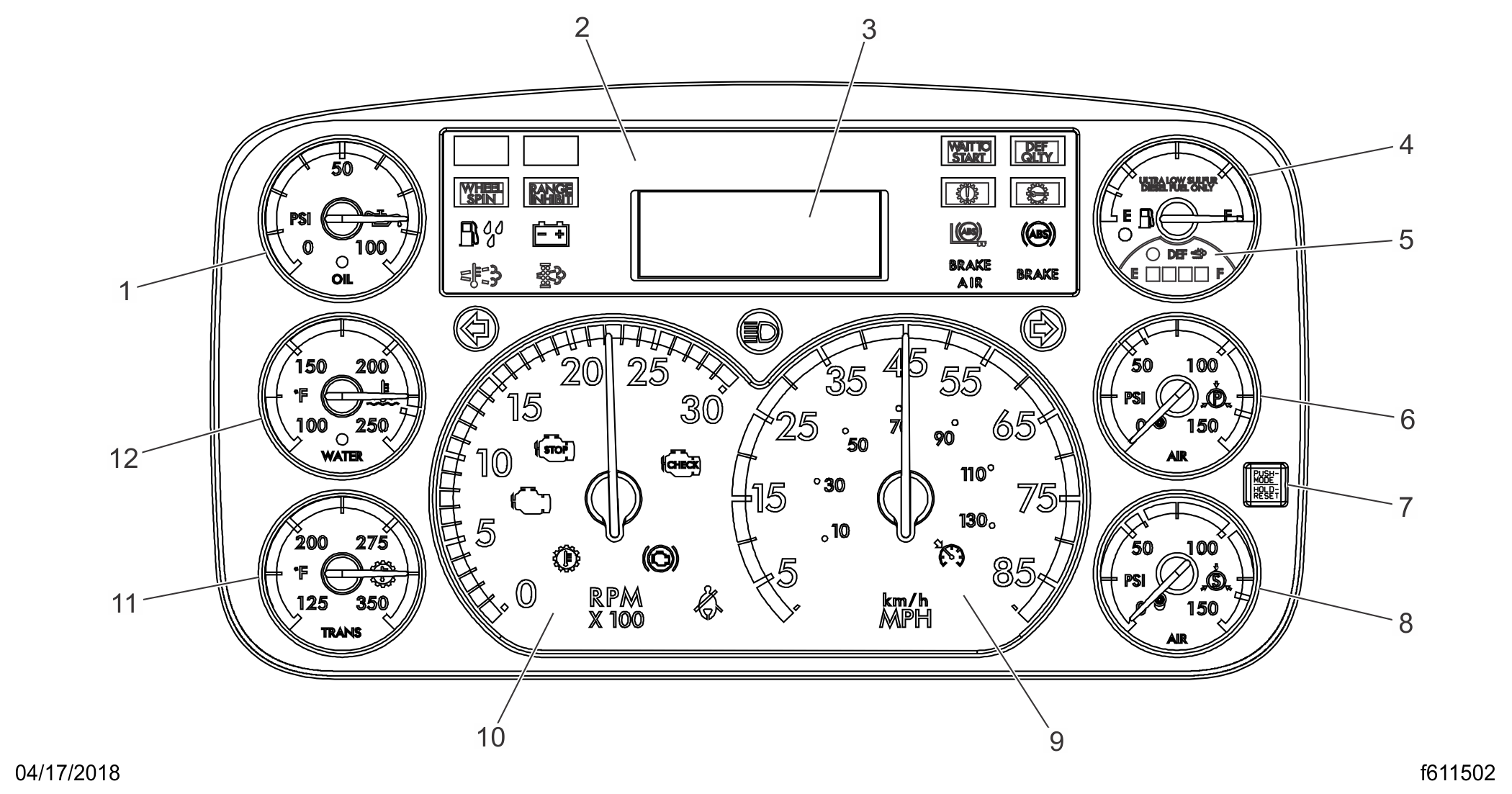

Fig. 1, Gauge Layout (typical, U.S.), EPA10 and Newer Engines

Note:
